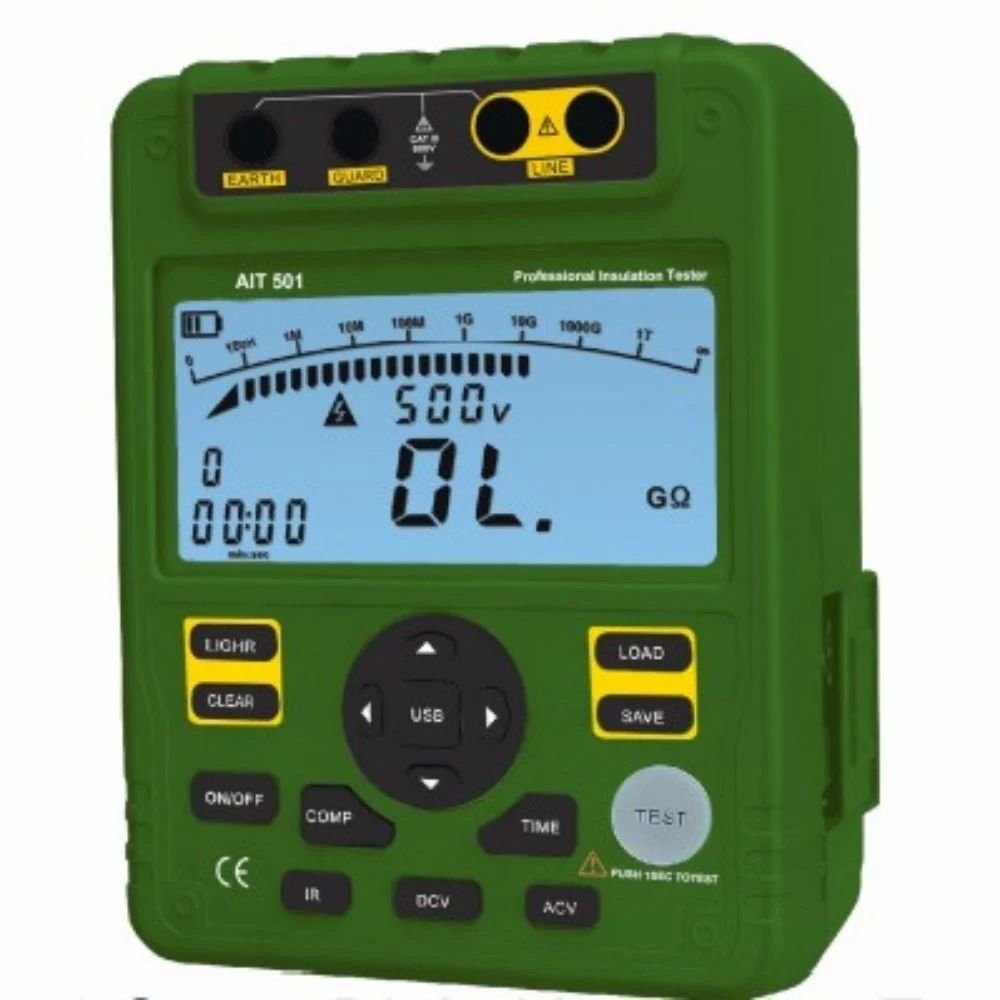

The Agam AIT 501 is the compact insulation resistance tester with diagnostic features like PI, DAR.
At 500V this tester can carry out insulation resistance measurements from 1MOhms to 20GOhms, it carries out this measurement at 5MOhms to 1000GOhms. The tester can also be used to carry out AC/DC voltage measurements and low resistance testing. The AIT 501 is an auto-ranging device and will automatically choose the applicable range depending on the test. It also includes a large, backlit LCD screen, auto power down function when left idle and includes a USB interface for using the tester to download data to PC. To accompany USB connectivity the AIT 501 also includes data logging capabilities. When displaying testing results the AIT 501 uses both numerical and analogue bar graph representation of the test results. It also allows users to carry out comparisons, polarisation index calculations and dielectric absorption calculations. An ideal tool for Insulation testing designed smartly.
Test Voltages: 500V, 1000V, 2500V, 5000VTest Voltage Accuracy: 0% to 20%CAT III 600V, EN 61010-1 and EN 61326-1 compliant
Rishabh AIT-501 Digital Insulation Tester
| Brand | |
|---|---|
| Frequency | |
| Usage/Application | |
| Model Name/Number | |
| Test Voltage |
The Agam AIT 501 is the compact insulation resistance tester with diagnostic features like PI, DAR.
At 500V this tester can carry out insulation resistance measurements from 1MOhms to 20GOhms, it carries out this measurement at 5MOhms to 1000GOhms. The tester can also be used to carry out AC/DC voltage measurements and low resistance testing. The AIT 501 is an auto-ranging device and will automatically choose the applicable range depending on the test. It also includes a large, backlit LCD screen, auto power down function when left idle and includes a USB interface for using the tester to download data to PC. To accompany USB connectivity the AIT 501 also includes data logging capabilities. When displaying testing results the AIT 501 uses both numerical and analogue bar graph representation of the test results. It also allows users to carry out comparisons, polarisation index calculations and dielectric absorption calculations. An ideal tool for Insulation testing designed smartly.
Test Voltages: 500V, 1000V, 2500V, 5000VTest Voltage Accuracy: 0% to 20%CAT III 600V, EN 61010-1 and EN 61326-1 compliant
